Titratable Acidity Titrator and pH Meter

An Easy-to-Use, Fast and Affordable All-in-one Solution

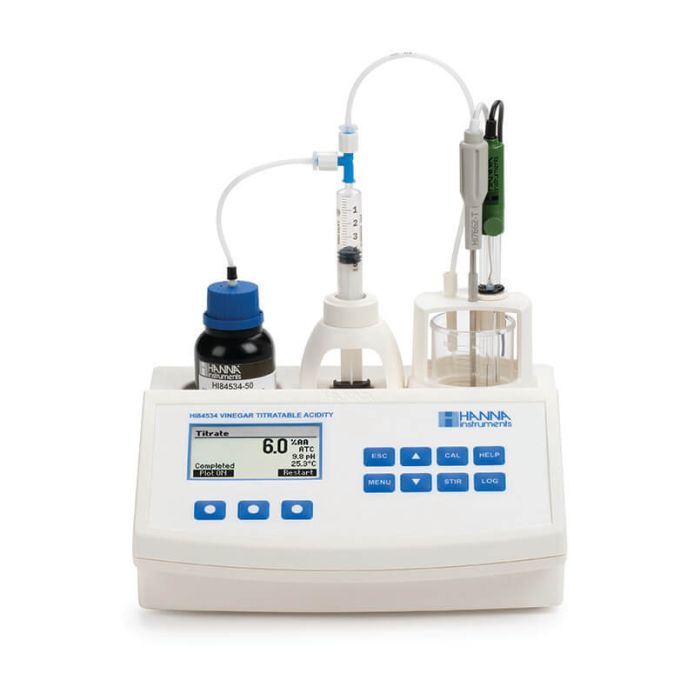

The HI84534 is a low-cost, easy to use automatic minititrator and pH meter designed for the rapid and accurate analysis of Total Titratable Acidity in Vinegar. The HI84534 minititrator is a valuable tool because of its ability to eliminate subjective factors including color indicators, errors in mathematical calculations or erratic titrant additions, it will quickly become a valuable acidity analysis tool of vinegar.

The HI84534 incorporates a precise piston dosing system, which allows for a highly accurate determination of the amount of titrant used. It is also capable of dynamic dosing, making testing both faster and more accurate. Pump calibrations are performed with the provided Hanna standard and help assure the accuracy of the measurement.
An intuitive interface makes the instrument simple to use and the dedicated HELP key guides the user through set-up, calibration status, and troubleshooting.

This mini titrator includes a pre-programmed analysis method based on the Standard Methods of Water and Wastewater Determination. It uses a powerful algorithm which analyzes the shape of the electrode
response in order to determine when the titration reaction has reached completion.

This mini titrator is also designed to be used as a benchtop pH/mV meter. The CAL Check function not only ensures an accurate pH reading when the HI84534 is used as a pH meter but also an accurate titration since the
endpoint is determined by a set pH value.



Vinegar

Vinegar is made when acetic acid bacteria is added to an alcohol beverage such as wine. The bacteria will eat the ethanol and produce a tart, pungent liquid know as acetic acid. The acetic acid concentration in vinegar typically
ranges from 4 to 9 % (w/v). The pH of vinegar is typically between 2.5 to 3.0, depending on the acetic acid concentration. Vinegar can be made out of anything that has alcohol (ethanol) in it, including wine, beer,
and hard cider. The type of vinegar depends on what liquid the ethanol has been fermented in. White vinegar is made a vodka type liquor made from grain, while apple cider vinegar is made from apples and balsamic vinegar is
made from grape must. Outside of the United States popular vinegars include rice, coconut and cane. Vinegars are commonly used in food preparation, medicine, agriculture and in cleaning solutions.

The titratable acidity of vinegar is determined by titrating the sample with a strong base to a fixed pH. The end point is determined by the potentiometric input and the results are typically expressed as % (g/100mL) or g/L
acetic acid. The HI84534 minititrator method is based on the Official Methods of Analysis of AOAC International.



On-screen Features

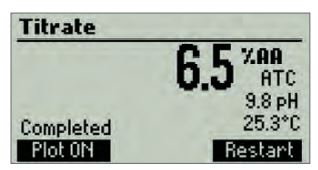

Easy and clear measurement

The HI84534 is a single parameter titrator designed to measure acidity in a few easy steps. The HI84534 displays the results directly on the screen in user-selectable units.

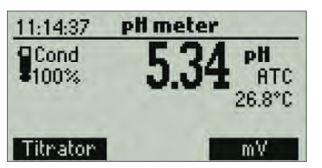

pH meter with electrode condition on display

The HI84534 also functions as a pH meter. The HI84534 also displays the electrode condition on the LCD using Hanna’s exclusive electrode diagnostics.

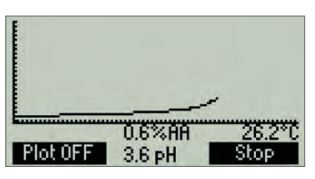

Titration curve displayed on screen

The HI84534 offers real time graphing of the titration curve on the LCD.



Specifications HI84534

Titrator

Range:  0.3 to 10.0 % w/v (g/100mL) as acetic acid 3 to 100 g/L as acetic acid

Resolution:  0.1%, 1g/L

Accuracy (@25°C/77°F):  3% of reading or ± 0.1 % , whichever is greater 3% of reading or ± 1 g/L,              whichever is greater

Sample Volume: 1 mL

Titration Method:  Acid-base titration

Principle:  Fixed end point titration to pH 8.2

Pump Speed: 10 mL/min

Stirring Speed: 600 rpm

Data storage: up to 200 titrations

pH/mV Meter

pH Range:  -2.0 to 16.0 pH / -2.00 to 16.00 pH

pH Resolution:  0.1 pH / 0.01 pH

pH Accuracy (@25°C/77°F):  ± 0.01 pH

pH Calibration:  one, two or three-point calibration; four available buffers (pH 4.01, 7.01, 8.20, 10.01)

mV Range: -2000.0 to 2000.0 mV

mV Resolution: 0.1 mV

mV Accuracy (@25°C/77°F):   ± 1.0 mV

Data storage:  up to 200 data points (pH or mV)

Temperature

Range:  -20.0 to 120.0°C; -4.0 to 248.0°F

Resolution:: 0.1°C; 0.1°F

Accuracy (@25°C/77°F):  ±0.4°C; ±0.8°F without probe error

Compensation:  manual or automatic

Additional  Specifications

pH Electrode: HI1131B glass body pH electrode with BNC connector and 1 m (3.3’) cable (included)

Temperature Probe: HI7662-T stainless steel temperature probe with 1 m (3.3’) cable (included)

Connectivity: (1) Type-B USB for PC interface, (1) Type-A USB for storage

Environment: 0 to 50°C (32 to 122 °F); max 95% RH non-condensing

Power Supply: 12 VDC power adapter

Dimensions:  235 x 200 x 150 mm (9.2 x 7.9 x 5.9”)

Weight: 1.9 kg (67.0 oz.)

Ordering Information

HI84534-01 (115V) and HI84534-02 (230V) are supplied with HI1131B pH electrode, HI7662-T temperature probe, HI7082 electrode fill solution, HI84534-70 reagent kit for water analysis, 100 mL beakers (2), dosing pump valve, 5 mL syringe, 1 mL plastic pipette, tube set (aspiration tube with titrant bottle cap and dispensing tube with tip), stir bar, power adapter, instruction manual and quality certificate.
