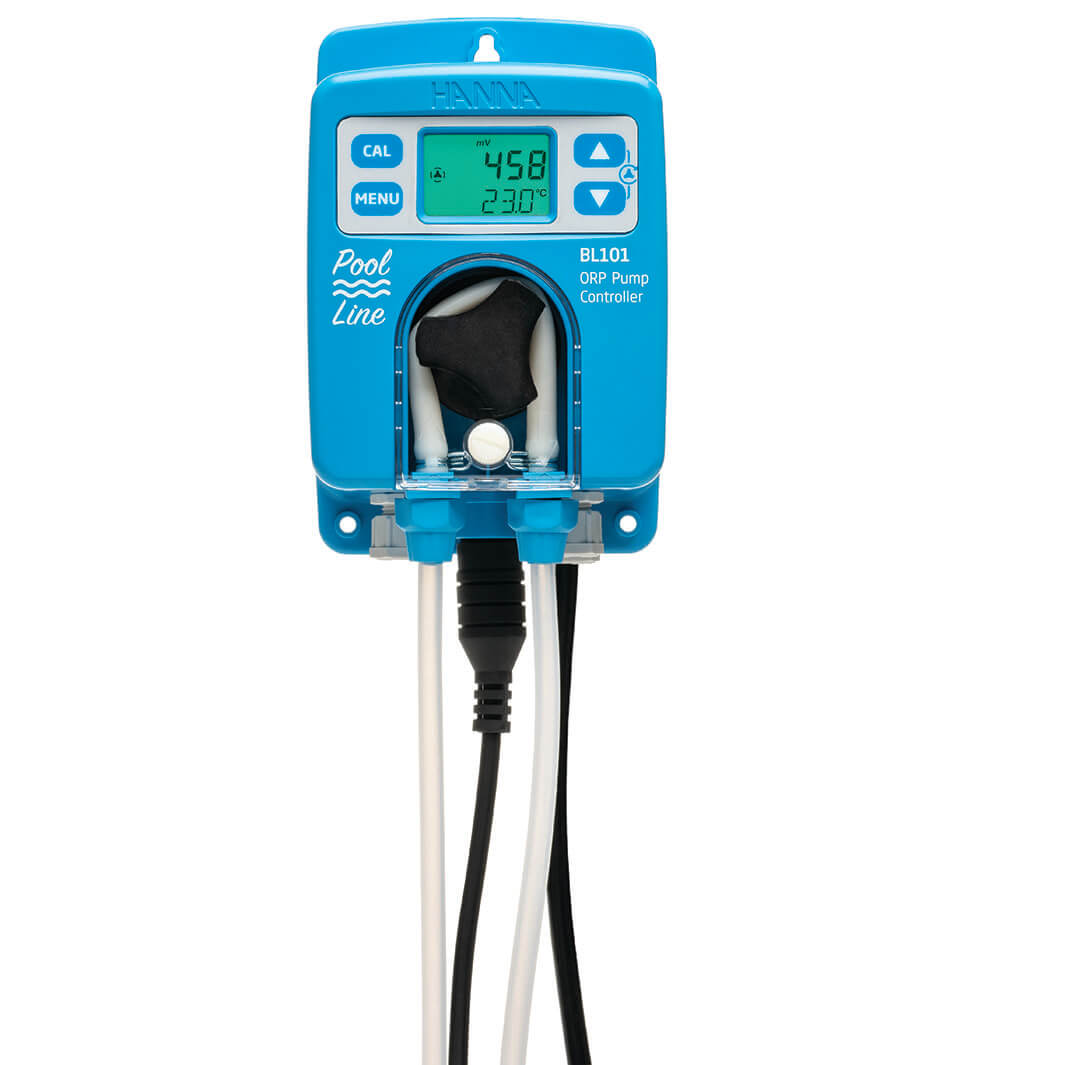

ORP Controller and Dosing Pump BL101-10

Name: ORP Controller and Dosing Pump BL101-10
SKU: BL101-10
Price: 574.00 EUR

Na zalogi

Developed to be an inexpensive solution for pool owners and maintenance companies to maintain the ideal ORP value at all times, the BL101 ORP Controller and Dosing Pump is a system engineered for maintaining the ORP of swimming pools, hot tubs, and spas. Simply insert the probe and injection valve in-line with the recirculation pump and provide the chemical to be dosed.

Preskoči na konec galerije slik

Preskoči na začetek galerije slik

Opis

Peristaltic Dosing Pump

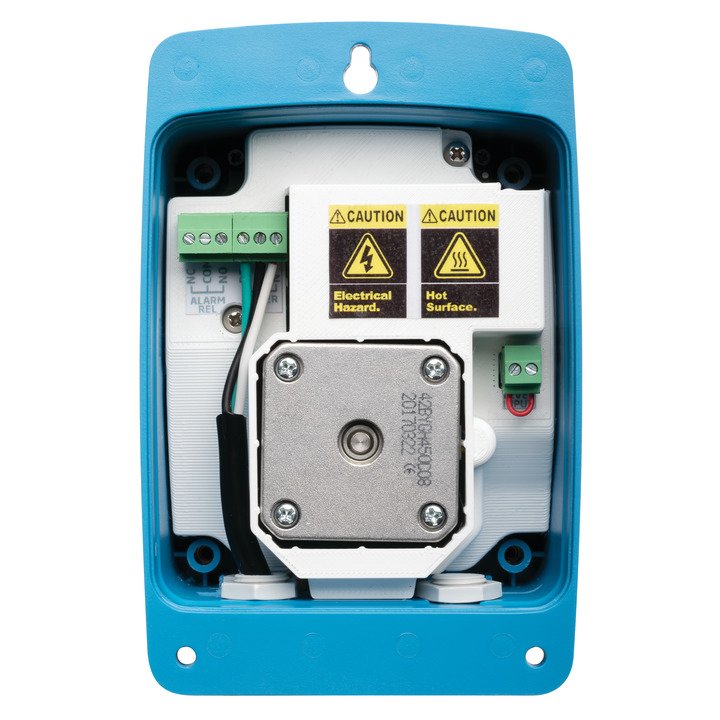

The powerful built-in peristaltic pump uses a stepper motor which does not have any gears or brushes providing for a long life with little maintenance.

Automatic Proportional Pump Control

The peristaltic dosing pump can be controlled by simple on/off or more advanced proportional control which helps prevents overshooting of the set point.

Adjustable Flow Rate

The dosing pump flow rate is adjustable from 0.5 to 3.5L/h, allowing for better control in maintaining a desired set point.

Acid Tank Level/Flow Switch Input

A connection to an optional level controller or flow switch. This input can be used to disable the dosing pump when there is no chemical left in the reservoir tank or there is no flow due to the pump being turned off.

Multicolored LCD Display

A multi-colored LCD provides a quick way to see the status of the pool controller. The display will show green when operation normally and red while in an alarm state.

Quick Connect Probe Input

The Quick Connect DIN connector creates a waterproof seal with the meter making it ideal for reducing electrical noise issues with the connection caused by humid environments.

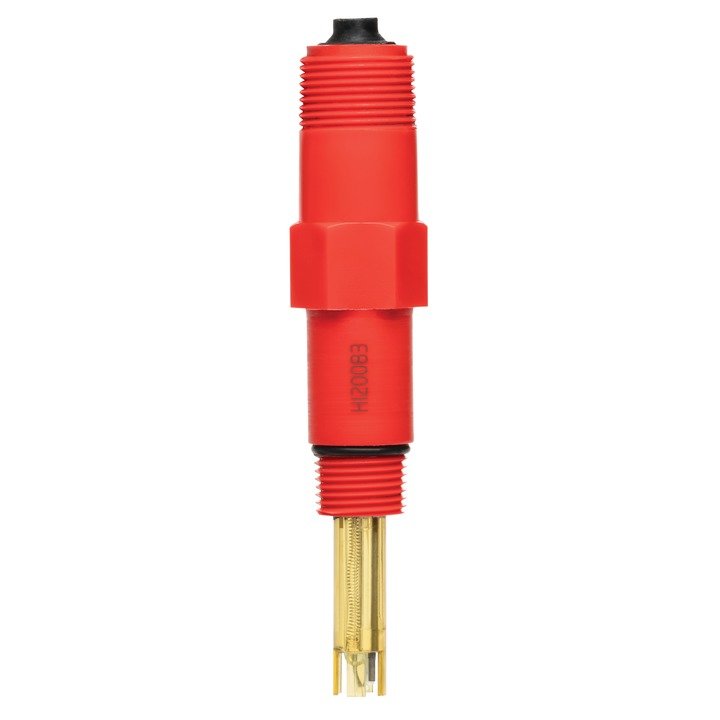

Pool Line ORP/Temperature Probe - HI20083

The BL101 uses the HI20083 probe that incorporates both ORP and temperature sensors and connects to the controller with a single waterproof Quick Connect DIN connector.

PVDF body
1/2” threaded fitting for insertion to an in-line “T” fitting or the flow cell

Specification

SKU	BL101
ORP Range	-2000 to 2000 mV
ORP Resolution	1 mV
ORP Accuracy (@25°C/77°F)	±5 mV
Temperature Range	-5.0 to 105°C (23.0 to 221.0°F)
Temperature Resolution	0.1°C (0.1°F)
Temperature Accuracy (@25°C/77°F)	±0.5°C (±0.9°F)
Temperature Compensation	automatic
Calibration	process calibration: single point, adjustable (± 50 mV around measured ORP value)
Pump Control	selectable flow rate (0.5 to 3.5 L / hour; 0.13 to 0.92 G/hour) manual control for pump priming
Alarms	high and low with enable / disable option triggered after 5 sec. if controller records a set of consecutive readings over / under threshold values level with enable / disable option overtime protection (1 to 180 min. or off) intuitive alarm system using red, light green, and green color-coded backlight
External Event Input	input for level controller or flow switch to disable dosing pump in the event of no chemical when using a level controller or no flow when using a flow switch - galvanically isolated
Alarm Relay Output	SPDT 2.5A / 230 VAC
Power Supply	100—240 VAC, 50/60 Hz
Power Consumption	15 VA
Casing	wall mounted, built-in pump, IP65 rated
Environment	0-50°C (32-122°F), max. 95% RH non-condensing
Dimensions	90 x 142 x 80 mm (3.5 x 5.6 x 1.8”)
Weight	910 g (32 oz.)
Ordering Information	BL101-00 is supplied with HI20083 ORP/temperature probe, ORP test solution, (3), power connection cable, instruction manual and quality certificates for instrument and probe. BL101-10 (with in-line mounting kit) is supplied with BL101 controller, HI20083 ORP/temperature probe, pool controller aspiration filter, pool controller injector, 1/2” thread, saddle for Ø 50 mm pipe (2), aspiration PVC tube (flexible) (5 m), dispensing PE injection tube (rigid) (5 m), valves (2), ORP test solution (3), power connection cable, instruction manual and quality certificates for instrument and probe. BL101-20 (with flow-cell mounting kit) is supplied with BL101 controller, HI20083 ORP/temperature probe, flow cell for BL100/BL101, mounting panel assembly for BL100/BL101, pool controller aspiration filter, pool controller injector, 1/2” thread, saddle for Ø 50 mm pipe (3), aspiration PVC tube (flexible) (5 m), dispensing PE injection tube (rigid) (15 m), tubing adapter 1/2” - 6 mm with racord (2), valves (2), ORP test solution, 20 mL (3), power connection cable, instruction manual and quality certificates for instrument and probe.
Recommended Probe	HI20083 Platinum tip ORP/Temperature probe with quick connect DIN connector - galvanically isolated
