Iron Low Range and High Range
Handheld Colorimeters
• Easier to use and more accurate than chemical test kits
• Dedicated to a single parameter
• Small size, big convenience
• Ideal for:
· Industrial ground and treated waters
· Mining leachate monitoring
· Agricultural irrigation water
· Pools and spas
About 6.3% of the earth’s crust is made of iron, of which 43% is in soils. The analysis ofiron is often performed to monitor ground water and irrigation waters as a gauge of corrosion from industrial settling, and as an indication of the effectiveness of treatment from mining leachate.

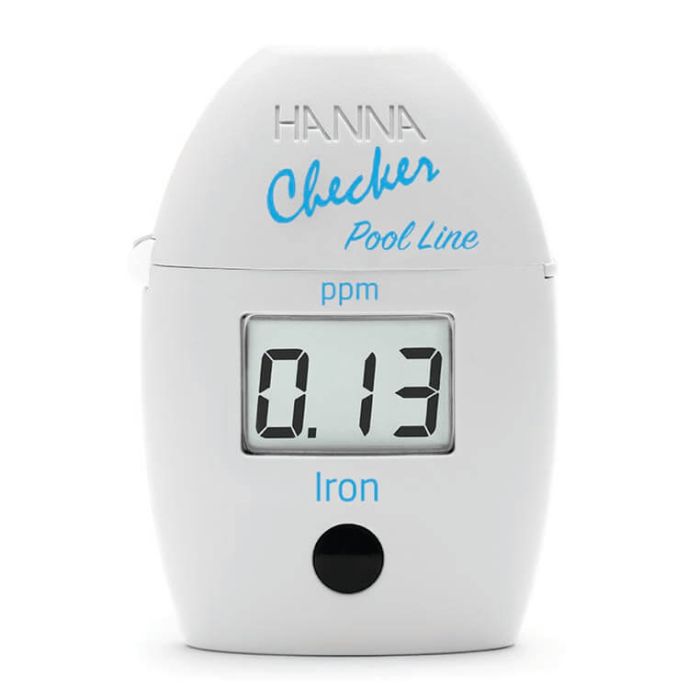

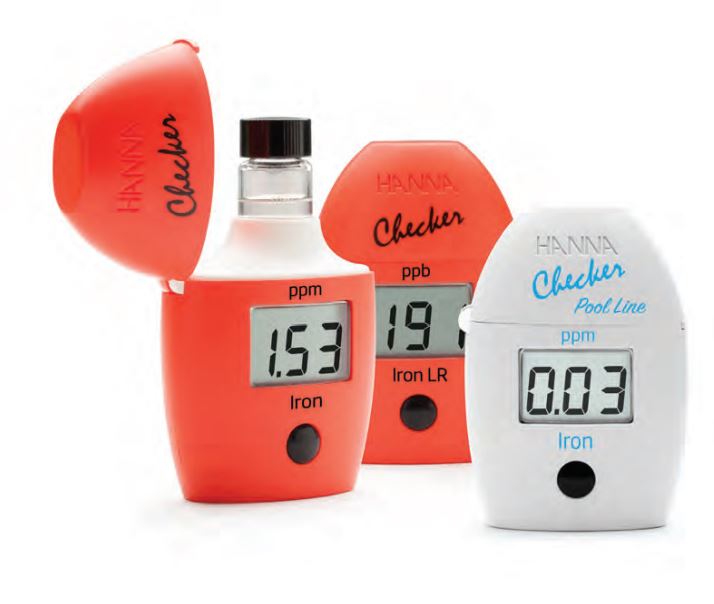

The Hanna HI746, HI721, and HI7214 Checker®HC bridge the gap between simple chemical test kits and professional
instrumentation. Chemical test kits are not very accurate and only give 5 to 10 points of resolution, while professional
instrumentation can cost hundreds of dollars and can be time-consuming to calibrate and maintain. These meters are accurate,affordable, and produce immediate results.
The HI721 and HI7214 features a resolution of 0.01 ppm and ±0.04 ppm ±2% of reading accuracy while the HI746 features 1 ppb resolution and ±20 ppb ±5% of reading accuracy. The contoured style of these meters fit in
your palm or pocket perfectly and the large LCD is easy to read. The auto shut-off feature assures battery life will not be drained if you forget to turn it off.
Specifications
|
Range |
0.00 to 0.90 ppm 0.00 to 2.50 ppm 0.0 to 30.0 ppm |
|
Resolution |
0.01 ppm 0.01 ppm 0.1 ppm |
|
Accuracy@25°C (77°F) |
±20 ppb ±5% of reading ±0.04 ppm ±2% of reading |
|
Light Source |
LED @ 525 nm |
|
Light Detector |
silicon photocell |
|
Environment |
0 to 50°C (32 to 122°F); RH max 95% non-condensing |
|
Battery Type |
1.5V AAA (1) |
|
Auto-off |
after seven minutes of non-use |
|
Dimensions |
86.0 x 61.0 x 37.5 mm (3.4 x 2.4 x 1.5”) |
|
Weight |
64 g (2.3 oz) |
|
Method |
adaptation of the TPTZ method. The reaction between iron and the reagent causes a violet tint in the sample. |
|
Ordering Information |
HI746 Checker®HC is supplied with sample cuvettes with caps (2), iron LR reagent starter kit (reagents for 25 tests), 25 mL glass cylinders with rubber cap (2), battery, and instructions. |
|
Reagent Set |
HI746-25 (25 tests) HI721-25 (25 tests) HI721-25 (25 tests) |
|
Calibration Set |
HI746-11 HI721-11 HI721-1 |
