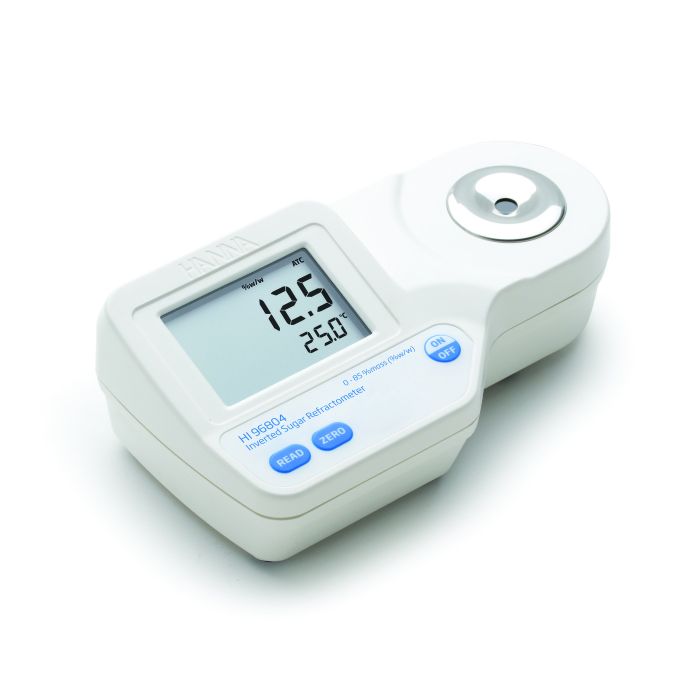

Digital Refractometer for % Invert Sugar by Weight Analysis - HI96804

The HI96804 Digital Invert Sugar Refractometer converts the refractive index of a food sample to % invert sugar by weight. This conversion is based on the tables found in the ICUMSA Methods Book (International Commission for Uniform Methods of Sugar Analysis) that documents the changes in refractive index with temperature for a percent by weight invert sugar solution. The HI96804 is ideal for the analysis of invert sugar produced from honey, jam, or manufactured from the splitting of sucrose compound. The HI96804 is an easy to use tool for measuring sugar in food samples in the field or in the lab.

• Designed for food sugar analysis
• Temperature Compensation algorithms based on invert sugar solution
• 0 to 85% invert sugar by weight range with an accuracy of ± 0.2%

Refractive Index

The HI96804 takes measurements based on a sample’s refractive index. A Refractive index is a measurement of how light behaves as it passes through the sample. Depending on the sample’s composition, the light will refract and reflect differently. By measuring this activity with a linear image sensor, the sample’s refractive index can be assessed and used to determine its physical properties such as concentration and density. In addition to the linear image sensor, the HI96804 uses an LED light, prism and lens to make measurement possible.

Variations in temperature will affect the density of a solution based on the compound that is present. In digital refractometry, the use of temperature compensation is necessary for accurate results. The HI96804 contains a built-in temperature sensor and is programmed with temperature compensation algorithms in accordance with the ICUMSA Methods Book for a percent by weight sucrose solution.

Features at-a-glance

One-point calibration

• Calibrate with distilled or deionized water

Small sample size

• Sample size can be as small as 2 metric drops (100 μl)

Automatic Temperature Compensation (ATC)

• Samples automatically compensated for temperature variations

Quick, accurate results

• Readings are displayed in approximately 1.5 seconds

Dual-level LCD

• The dual-level LCD displays measurement and temperature readings simultaneously

• Stainless steel sample well
  Easy to clean and corrosion-resistant


• Battery indicator
  Battery percent level remaining at startup and low battery indicator


• Automatic shut-off
  To conserve battery life the meter shuts off automatically after three minutes of non-use


• Stainless steel sample well
  Easy to clean and corrosion-resistant


• IP65 water resistant protection
  Water resistant ABS plastic casing designed to perform under laboratory and field conditions.

Specifications
