SKU
HI3210B/5

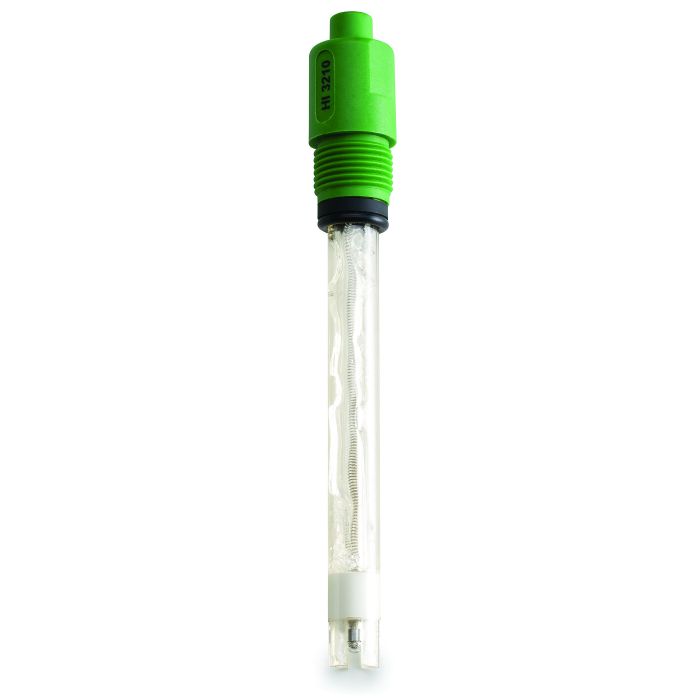

Combination ORP electrode (PEI body, 5m cable) - HI3210B/5
214,00 €
Na zalogi
This combination ORP electrode (PEI-body) is designed for industrial applications with features such as platinum sensor, a cloth junction, and T-type connection. With it's durable design, you can count on this electrode to stand up to your process environment.
- Combination PEI-body ORP electrode.
- Screw cap connector and PG 13.5 thread .
- Built for everyday, demanding use in industrial applications
Combination electrode
Single combined electrode that has both sensing and reference components for added convenience.
PEI body
PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
Platinum sensor
Provides the best response over a wide range of applications.
Flexible instalaltion
All Hanna pH and ORP electrodes can be mounted with the Hanna inline and submersion assemblies.
Specifications
| Specification Name | Detail |
|---|---|
| SKU | HI3210B/5 |
| Tip Shape | Platinum |
| Body | PEI |
| Junction | Double, PTFE |
| Glass Type | (0 to 80°C/ 32 to 176°F) |
| Electrolyte | Polymer |
| Matching Pin | No |
| Amplifier | No |
| Temperature Sensor | No |
| Max Pressure | 3 bar (43.5 psi) |
| Connector | BNC |
| Cable | 5m |
| Length | 148.5mm |
| Warranty | 6 months |
